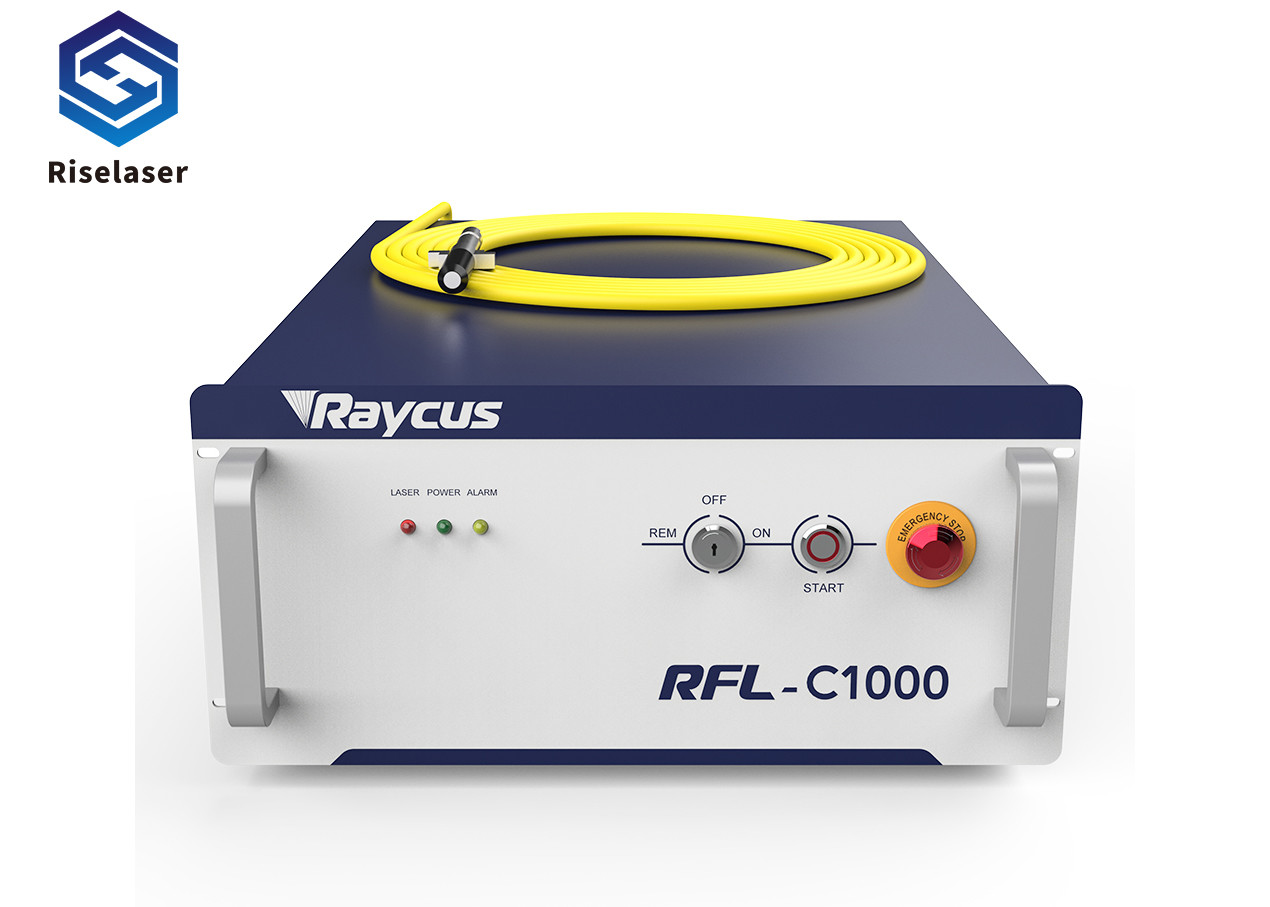

1000W Raycus Fiber Laser Source For Laser Cutting Machine Laser Welding Machine

  • 1000W Raycus Fiber Laser Source For Laser Cutting Machine Laser Welding Machine
Place of Origin Shenzhen, China
Brand Name Raycus
Certification CE,ISO9001:2008
Model Number RFL-C1000
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Carton Case
Delivery Time 7 Work Days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Word Raycus Fiber Laser Source Laser Power 1000W
Working Mode CW Output Power Adjustment Range（％） 10-100
Center Wavelength (nm) 1080±5 M2 ＜1.3
Output Connector QBH（customizable) Cooling Way Water Cooling
Size（mm) 485*748*237（With Handle） Power Consumption 3600W
High Light

Raycus Fiber Laser Source

,

1000W Fiber Laser Source

,

1000W raycus laser source
Leave a Message
Product Description

1000W Raycus fiber laser source description
Raycus developed the third-generation single-module continuous wave fiber laser series with power ranging from 300W to 3000W. The new laser has higher electro-optical conversion efficiency, higher and more stable optical quality, and stronger resistance to plateau stress. Optimized secondary-a new generation of optical fiber transmission system to ensure a more stable and finer cutting effect when cutting thick slices.

1000W Raycus Fiber Laser Source For Laser Cutting Machine Laser Welding Machine 0

This machine is suitable for a variety of application scenarios: cutting, welding, perforating, medical equipment processing, etc. The seam of the cut piece is narrow and the section is bright. Compared with similar lasers, the advantages are obvious.



1000W Raycus fiber laser source used for welding

1000W Raycus Fiber Laser Source For Laser Cutting Machine Laser Welding Machine 11000W Raycus Fiber Laser Source For Laser Cutting Machine Laser Welding Machine 2



1000W Raycus fiber laser source used for cutting

1000W Raycus Fiber Laser Source For Laser Cutting Machine Laser Welding Machine 3



1000W Raycus fiber laser source specification



Product Parame
Type RFL-C1000
Average output power(W) 1000
Center wavelength (nm) 1080±5
Operating mode CW/Modulate
Maximum modulation frequency(KHZ) 5
Output power stability ±1.5%
Red light Yes
Output connector QBH(customizable)
Beam quality(M2) 1.3(25 μm)
Polarization state random
Output fiber length(m) 20(customizable)
Input power 200-240
Control mode externalRS232/externalAD
Power adjustment range 10-100
Power consumption 3600
size(mm) 485*748*237(With handle)
Width*height*depth
weight(KG) ＜50
cooling method Water Cooling
Operating temperature(℃) 10-40





Device Configuration:

1)1000W/1500WA continuous laser group
2) A laser fiber
3) A set of QBA welding head

1000W Raycus Fiber Laser Source For Laser Cutting Machine Laser Welding Machine 4



FAQ of 1000W Raycus fiber laser source

Q: What are your company's main products?
A: Our main products include laser welding machines, laser engraving machines, laser marking machines, laser cutting machines, and laser spare parts.

Q: How can I buy the most suitable machine for me?
Answer: You can tell us your work materials and detailed work through pictures or videos, so that we can judge whether our machines can meet your needs. Then we can provide you with the best model based on our experience. At the same time, you can send samples to us for testing.

Question: When I got this machine, but I didn't know how to use it. what do I do?
A: We will send the video and English manual with the machine. If you still have any questions, we can talk via phone or Skype and email.

Q: How long is the delivery time?
A: The laser marking machine will be delivered to you within 1-2 weeks after the order is confirmed.

Q: What should I do if the machine fails?
A: If you encounter such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.

Q: Will the package be damaged during transportation?
A: Our packages consider all damage factors and ensure their safety. Our freight forwarders have rich experience in safe transportation. We have exported to 200 countries around the world. So please don't worry, you will receive the package intact.

Q: What are the payment terms?
A: The payment terms we accept include: Western Union, T/T, VISA, Online bank payment.

Q: How is the transportation method?
A: Air and sea transportation are normal methods; if there are special requirements, the final confirmation of both parties is required.

1000W Raycus Fiber Laser Source For Laser Cutting Machine Laser Welding Machine 5
