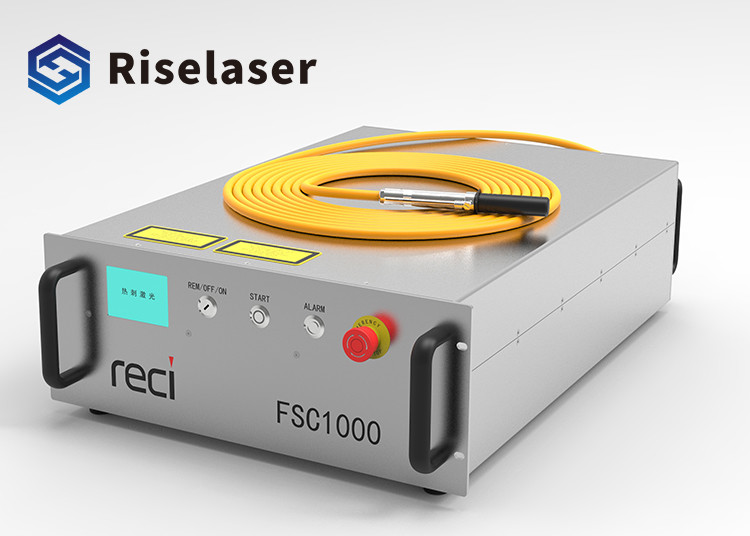

1000W RECI Fiber Laser Generator With 2 Years Warranty Water Cooling

  • 1000W RECI Fiber Laser Generator With 2 Years Warranty Water Cooling
Place of Origin Shenzhen, China
Brand Name RECI
Certification CE,ISO9001:2008
Model Number FSC1000
Minimum Order Quantity 1 PCS
Price US$3280
Packaging Details Plywood case
Delivery Time 7 Work Days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Word Brand Fiber Laser Generator Laser Power 1000W
Working Mode CW Output Power Adjustment Range（％） 10-100
Wave Length 1064nm M2 ＜1.3
Fiber Output Interface QBH Cooling Way Water Cooling
Output Fiber Length（m 15MM Operating Voltage（VAC） 220V ±10%、50/60Hz
High Light

RECI Fiber Laser Generator

,

1000W Fiber Laser Generator

,

QBH Fiber Laser Generator
Leave a Message
Product Description

The FSC series of high-power single-mode continuous fiber lasers are completely independently developed and produced by thermal stimulation light.



By solving the limitation of the average power of high-power single-mode fiber lasers, the mode instability (TMI), stimulated Raman scattering (SRS), and beam are further improved.



Bottlenecks such as poor quality have increased the average output power of single-cavity and single-transverse-mode lasers to 4000W.



This series of products integrates high average power, multiple anti-high reflections, high-quality beam quality, and high electro-optical conversion efficiency.



They can be widely used in various occasions such as fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping. Especially when cutting thick metal plates, not only the cutting speed is fast, but also the cutting seam of the plate is thin and the section is bright. Compared with other lasers of the same type on the market, the advantages are very obvious.



1000W RECI Fiber Laser Generator With 2 Years Warranty Water Cooling 0



Model FSC1000 FSC 1500 FSC 2000 FSC 3000
Laser Power(W) ≥1000 ≥1500 ≥2000 ≥3000
Wavelength(nm) 1080±3
Mode CW/Optional
Output power adjustment range(％) 10-100
Maximum frequency(kHz) 20
Power instability(％) <3
Indicating red light power > 0.5mW
Fiber output interface QBH
Output fiber core diameter(pm) 20/50 50 (30 Optional) 50 (100 Optional)
Output fiber length(m) 15 20
Operating Voltage(VAC) 220V ±10%,50/60Hz Three phase 380V ±10%,50/60Hz
Maximum power consumption(W) <4000 <6000 <8000 <12000
Working temperature(℃) 5~40
Working environment humidity(％) <70
QBH Cooling water temperature(℃) Room temperature
QBH Cooling water flow(L/min) 1.5〜2.5 (With load)
Whole machine cooling water temperature(℃) 25 (Summer 28)
Whole machine cooling water flow(L/min) >10 (With load) >15(With load) >20 (With load) >30 (With load)
Size:WxHxD (mm)(with hander) 483x147x754 483x147x804 483x147x804
Weight(kg) <55 <60 <75 <80



Application



01 Fine cutting

02 Metal welding

03 Surface treatment

04 Printing, rapid prototyping



1000W RECI Fiber Laser Generator With 2 Years Warranty Water Cooling 1
