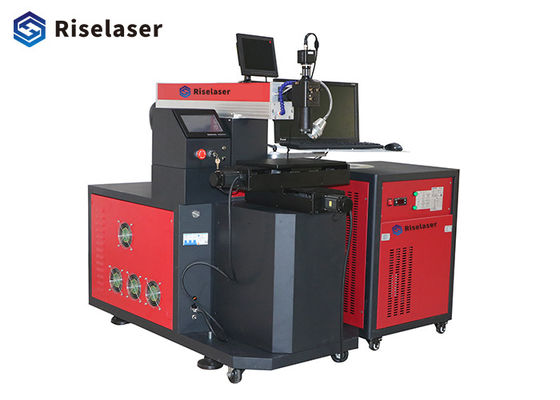

Automatic 50Hz 60Hz Yag Laser Welder For Mold Repair Production

Automatic 50Hz 60Hz Yag Laser Welder For Mold Repair Production

Features of Automatic pulse yag laser machine

1. With built in auto welding system to do automatic welding. High efficiency, high precision.

2. Imported ceramic condenser with high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;
3. Equipped with a 1.5p special water chiller, which can meet the long-term high-power welding requirements and has better stability;
4. The base of the worktable is raised and lowered electrically. The movement of the worktable adopts precision ball screws and high-precision linear guides. It is light and flexible, with accurate positioning, and the load-bearing capacity can reach 200 kilograms;
5. The laser head can be slid back and forth, manually lifted, and the laser head can be easily rotated 180 degrees, which is convenient for repair welding on any side;
6. Remote control, 360-degree flexible adjustment of the welding angle position, suitable for various mold welding, for large molds, you can directly weld the mold on the ground or forklift without a workbench, and can repair the welding radius of 1.5 meters and weighing several tons. Large-scale mold, and the equipment is equipped with pulleys, which is convenient to move, and can be directly moved to the injection molding machine for repair welding without tearing;
7. The welding depth is large, the welding is firmer, the welding part can be fully melted, there are no pores and trachoma, and the repaired traces are clean and beautiful.

Technical Parameters of Automatic pulse yag laser machine

Scope of application of Automatic pulse yag laser machine

Suitable for mobile phone communications, jewelry crafts, electronic components, clocks and watches, sensors and meters, precision machinery, hardware, gas auto parts and other metals and alloys;
This model is more suitable for laser welding of large molds, such as automobile molds, machine shell molds, tire molds, household appliances plastic shell molds and other large plastics
Glue and die-casting molds can be used for laser repair during mold wear; machining errors, EDM errors, mold reduction design changes, etc. require mold modification, which plays a key role and can make up for the huge losses caused by machining errors.
