JPT Raycus MAX 1500w Fiber Laser Welder With 3 Axis Customized Working Platfrom

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-Y1500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage For Battery Pack Welding Warranty 12 Months
Laser Source Brand JPT/Raycus/MAX Laser Head Brand WSX
Applicable Industries Manufacturing Plant After Warranty Service Video Technical Support, Online Support, Spare Parts
High Light

1500w Fiber Laser Welder

,

Raycus Fiber Laser Welder

,

Raycus fibre laser welding machine

Leave a Message
Product Description

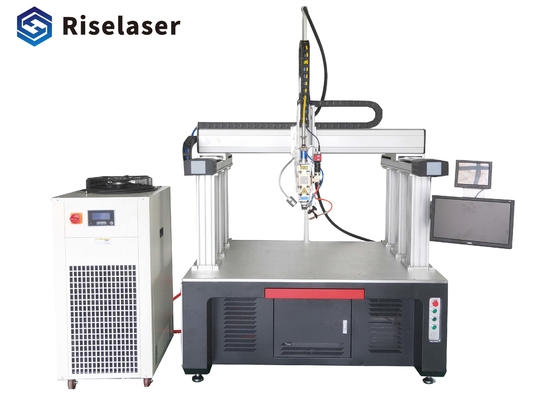

JPT Raycus MAX 1500w Fiber Laser Welder With 3 Axis Customized Working Platfrom



1500w laser welding machine fiber Applications
Laser welding is an efficient and precise welding method that uses a high-energy density laser beam as a heat source.



JPT Raycus MAX 1500w Fiber Laser Welder With 3 Axis Customized Working Platfrom 0



Laser welding is one of the important aspects of laser material processing technology. The welding process belongs to the heat conduction type. The surface of the workpiece is heated by laser radiation, and the surface heat is diffused through the heat transfer tube. By controlling the width, energy, peak power and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool.

JPT Raycus MAX 1500w Fiber Laser Welder With 3 Axis Customized Working Platfrom 1



Laser welding is a new type of welding method. Laser welding is mainly for the welding of thin-walled materials and precision parts, and can realize spot welding, butt welding, stitch welding, sealing welding, etc.



Laser welding machine fiber characteristics:
1. High aspect ratio, small weld width, small heat-affected zone, small deformation and fast welding speed.
2. The welding seam is smooth and beautiful, no treatment or simple process is required after welding.
3. The welding seam has high quality and no porosity, which can reduce and optimize the impurities in the base metal.
The microstructure can be refined after welding. The strength and toughness of the weld are at least equivalent to that of the base metal.
4. It can be precisely controlled, the focused light spot is small, the positioning accuracy is high, and it is easy to realize automation.
5. Welding between some different materials is possible.





1500w laser welding machine fiber Specification



SPECIFICATIONS FOR LASER WELDING MACHINE FIBER
Model
RL-Y1000W
RL-Y1500W
RL-Y2000W
RL-Y3000W
Laser Power
1000W
1500W
2000W
3000W
Control Method
Control card and computer
XY Travel
Customizable, Max 700*500mm
Z Travel
Customizable, Max 400mm
R Axis
Optional, 360° rotation
Position Accuracy
±0.01mm
Motion Source
Step motor or Servo motor
Max Speed
500mm/s
Welding Penetration
0.1~3.0mm
Cooling Method
Water cooling
Electricity Demand
Single phase 220V/50Hz 3-phase 380V/50Hz
Laser Wavelength
1080nm
Observation Syatem
Red light and CCD system
Gas Protection
Optional, Argon, Nitrogen
Environmental Requirements
No vibration, interference and ventilation
Consumables
Protection lens, purified water, protection gas
Machine Size
1200L*1100W*1750Hmm
Machine Weight
400kg
