1500w Raycus Portable Laser Welding Machine For Handheld Welding

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-W1500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Fiber Laser Welding Machine Laser 1500w Raycus
Wavelength 1070nm±5nm Working Mode CW
Welding Depth ≤2.0 Mm Fiber Core Diameter 50-100um
Fiber Length 10m
High Light

1500w Raycus Portable Laser Welding Machine

,

1070nm Portable Laser Welding Machine

,

1500w Raycus portable laser welder

Leave a Message
Product Description

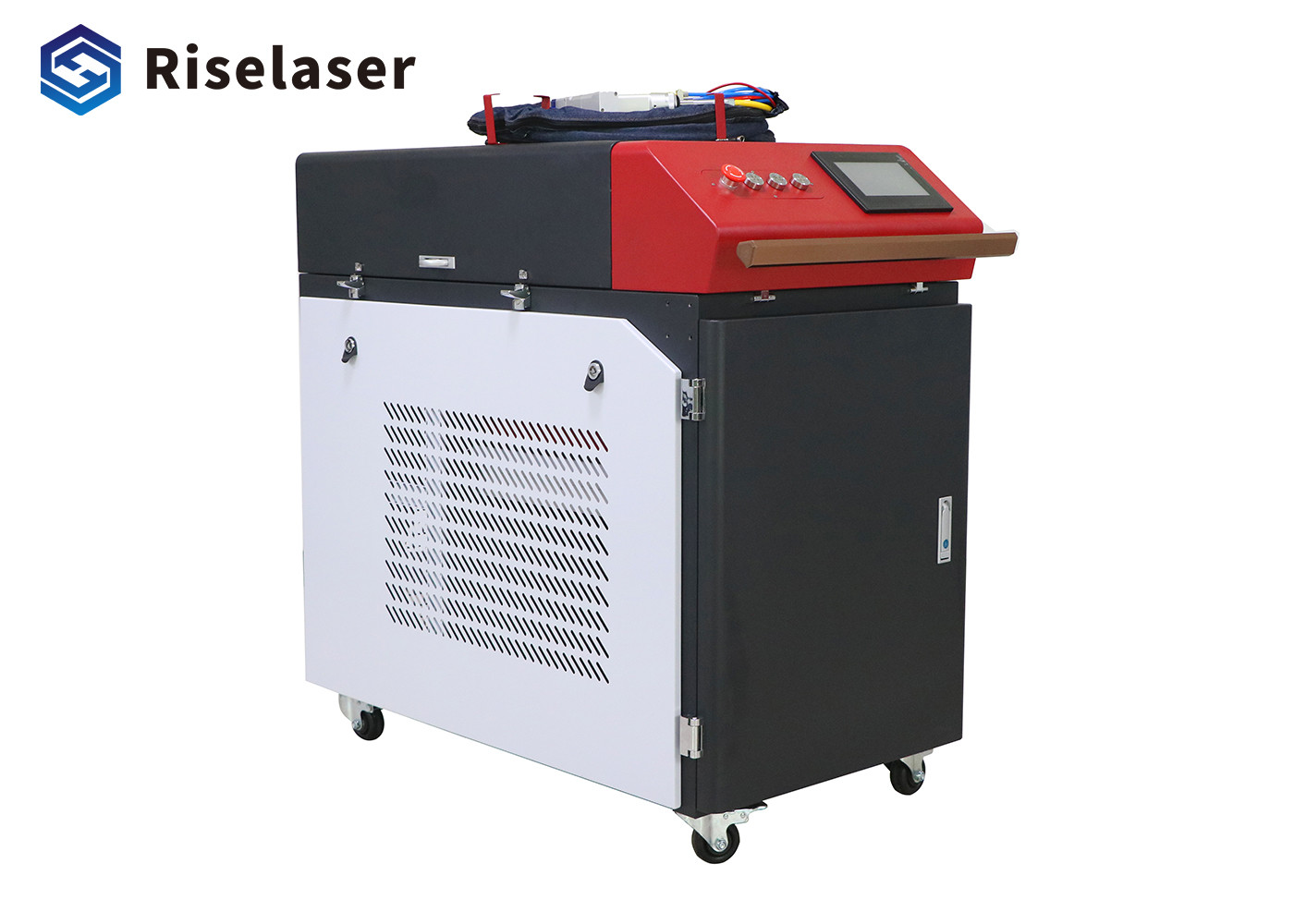

1500w Raycus Portable Laser Welding Machine For Handheld Welding



Performance characteristics:
1. The hand-held laser welding machine uses a hand-held welding gun to replace the previously fixed optical path, subverting the previous working mode of the laser welding machine. This mode of operation is not only convenient for welding molds, advertising characters, kitchen utensils and other products, but also for outdoor laser welding.



2. The operation mode of the hand-held welding torch enables the workpiece to be welded at any position and at any angle. It can realize intelligent switching of dual optical paths, and evenly distribute energy according to different times and different lights;



3. The precise positioning of the red light is easy to observe, the operation is simple, and the welding can be done by hand, and there is no need to spend a large amount of cost to ask the welding master;



4. Compared with the deployment of fully automatic equipment, the handheld laser welding machine has a lower production compliance rate. But for production workshops engaged in small-scale processing or non-large-scale welding, manual laser welding is the best choice. There is no need to set up equipment to deploy the welding table, which takes up little space. The focus is on the diversification of welding products in small workshops, flexible product shapes, and manual Laser welding can fully meet the needs of this kind of production, with better compliance.



Fiber laser welding machine Parameter

NO. Item Technical
1 Product Name Fiber handheld laser welding machine
2 Laser source wavelength 1070 /1080 nm
3 Laser source brand Raycus / Max /IPG /other brand
4 Laser power option 1000W /1500W /2000W
5 Power supply Single phase 220V±10% 50/60Hz
triple phase 380V±10% 50/60Hz
6 Weld head Wobble(Magnetic levitation)
7 Welding head weigt 0.8kg
8 Control system  Riselaser System
9 Weld mode system CW/ PWM / Argon Arc/ QCW
10 Weld speed 0-120mm/s
11 Weld method Vertical /splicing/overlap/angle
12 Weld width 0 -5mm
13 Cooling system water chiller (built-in)
14 Water tank capacity 18 litres
15 Water quality require distilled water or purified water
16 Auxiliary gas Argon or Nitrogen gas
17 Power Consumption protection lens,brass nozzle
18 Fiber optical length 10m
19 Allowable air pressure range 0.1 to 0.3 MPa or 1 to 3 bar

20 Wire feeder option part
21 Support wire 0.8mm 1.0mm 1.2mm 1.6mm
24 lifetime 100,000 hours
25 Wattanty 1 years
26 Machine Weight 315kg
27 Machine dimension 600×1200×1200mm
28 Package Weight 335kg
29 Package Size 80X140X140cm





Fiber laser welding machine Application range:
Widely used in kitchens, household appliances, advertising, molds, stainless steel doors and windows, handicrafts, household goods, furniture, auto parts and many other industries.

1500w Raycus Portable Laser Welding Machine For Handheld Welding 0



Fiber laser welding machine Video
