90 Joule Laser Jewellery Welding Machine Jewelry Spot Welder

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, ce
Model Number RL-Y200
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Laser Beam Welding Spot Size Range -3mm~3mm
Pulse Width Range 1~20ms Aiming Positioning CCD, 10X Microscope
Max Energy 90 Joule Machine Size 790*390*1090mm
High Light

90 Joule Laser Jewellery Welding Machine

,

90 Joule Jewelry Spot Welder

,

90J Laser Jewellery Welding Machine

Leave a Message
Product Description

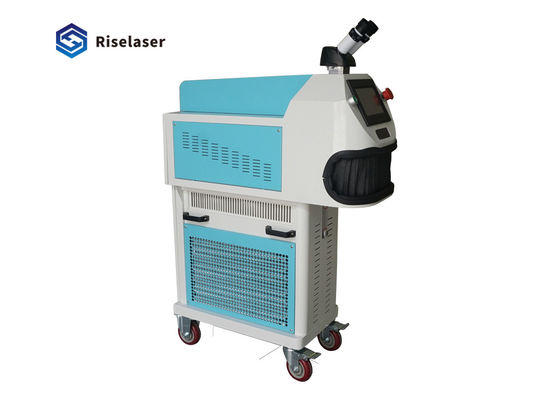

90 Joule Laser Jewellery Welding Machine Jewelry Spot Welder



The advantages of laser beam welding for jewelry

1. Imported ceramic condenser with high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;
2. The ergonomic design of the whole machine is more suitable for the jewelry industry. The product is exquisite, beautiful and stable, suitable for long-term continuous work;
3. Large internal space, convenient for placing laser spot welding tooling fixtures; installation of welding debris recovery box, convenient for cleaning and gold welding slag recovery;
4. LED shadowless ring light, no shadows are observed on the workpiece; With the help of high-definition somatic cell parallel light path microscope, the laser welding position can be observed more clearly;
5. The high-power beam expansion system can obtain a finer light spot to meet the requirements of fine laser spot welding.



Mini laser welding machine Specifications

Product name
Small laser welding machine
Laser source
Nd: YAG 1064nm
Max laser power
230W
Frequency range
1~50Hz
Pulse width range
1~20ms
Spot size range
-3mm~3mm
Max energy
90 Joule
Aiming positioning
CCD, 10X microscope
Positioning accuracy
+/-0.02mm
Input voltage
220V 50/60Hz 30A
Machine size
790*390*1090mm



90 Joule Laser Jewellery Welding Machine Jewelry Spot Welder 0



Application



Jewelry/dental laser welding machine is a product specifically for laser welding of jewelry, mainly used for holes and spot welding blisters of gold, bronze, stainless steel, and silver jewelry. The laser welding machine is widely used in the fields of jewelry, dentistry, and advertising signs, and has a good market prospect.



Samples

90 Joule Laser Jewellery Welding Machine Jewelry Spot Welder 1



Package

1. Anti-collision hemming: all parts of the machine are covered with some soft materials, mainly the use of pearl cotton
2. Fumigation wooden box: Our wooden box is fumigated, no need to check the wood, saving transportation time.
3. Whole film packaging machine: avoid all damage that may occur during transportation. Then we cover the plastic packaging tightly to ensure that the soft material is completely covered, while avoiding water ingress and rust.
The outermost is a wooden box with a fixed template.
3. The solid iron socket at the bottom of the wooden box is convenient for handling.

90 Joule Laser Jewellery Welding Machine Jewelry Spot Welder 2



After-sales service

Provide 1.24/7 service for every customer. If there are any technical problems or problems, our engineers will help you and provide you with solutions through telephone or online face-to-face communication.

2. There are professionals in need for installation and training.

Q: What is your optional laser welding machine jewelry?

Answer: We provide 60w/80w/100w/200w jewelry laser welding machines that have passed CE and FDA

Q: How many types can you provide for laser welding machine accessories?

In our company, we have a desktop, separate one, combine two into one for you to choose
