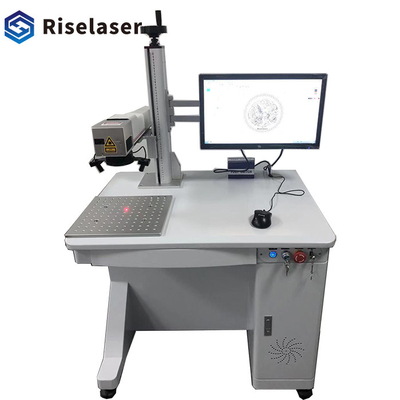

10000 mm/S Fiber Laser Marking Machine 50w Fiber Laser Engraver For Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Fiber Laser Engraver For Metal | Working Accuracy | 0.001mm |
|---|---|---|---|
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Laser Type | Fiber Laser |
| Condition | 100% New | CNC Or Not | YES |
| High Light | 10000 mm/S Fiber Laser Marking Machine,50w Fiber Laser Marking Machine,50w Fiber Laser Engraver |
||
Product Description
10000 mm/S Fiber Laser Marking Machine 50w Fiber Laser Engraver For Metal
Our advantages:
1. The fiber laser engraver for metal can produce high quality permanent codes on each piece of metal without affecting functional barcodes (such as 2D codes, text, logos, serial numbers and optical characters, etc.).
2. Riselaser offers customized solutions to meet individual customer requirements, from processing to maintenance.
3. When the power is more than 30w, it is easy to cut stainless steel, aluminum, copper, brass, gold and silver. The maximum thickness is 1mm.
Parameter of fiber laser engraver for metal
|
Laser Type
|
Fiber laser(or MOPA)
|
|
Laser Power
|
20W 30W 50W 60W 100W
|
|
Model
|
RL-20W/30W/50W/60W/100W
|
|
Laser Wavelength
|
1064nm
|
|
Marking Area
|
75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm
|
|
Marking Depth
|
≤1.2mm
|
|
Marking Speed
|
10000mm/s
|
|
Minimum Line Width
|
0.012mm
|
|
Minimum Character
|
0.15mm
|
|
Repeated Precision
|
±0.003mm
|
|
Life-span of Fiber Laser Module
|
100 000hours
|
|
Beam Quality
|
M2 <1.5
|
|
Focus Spot Diameter
|
<0.01mm
|
|
Output Power of Laser
|
10%~100% continuously to be adjusted
|
|
System Operation Environment
|
Windows XP /7/8/10 32/64bits
|
|
Temperature of Operation Environment
|
15℃~35℃
|
|
Power Input
|
220/110v single phase
|
|
Power Requirement
|
<400W
|
|
Communication Interface
|
USB
|
|
Machine Dimension/after package
|
760*680*770mm
|
|
Optional
|
Rotary Device, Moving Table, other customized Automation
|
Applicable industry of fiber laser engraver for metal
Fiber laser marking series machines are widely used in metal and non-metal fields, such as the automatic parts industry,
Medical equipment, electronic parts, IT industry, hardware industry, precision instruments, jewelry, handicrafts,
High and low voltage electrical appliances, packaging industry, etc.
