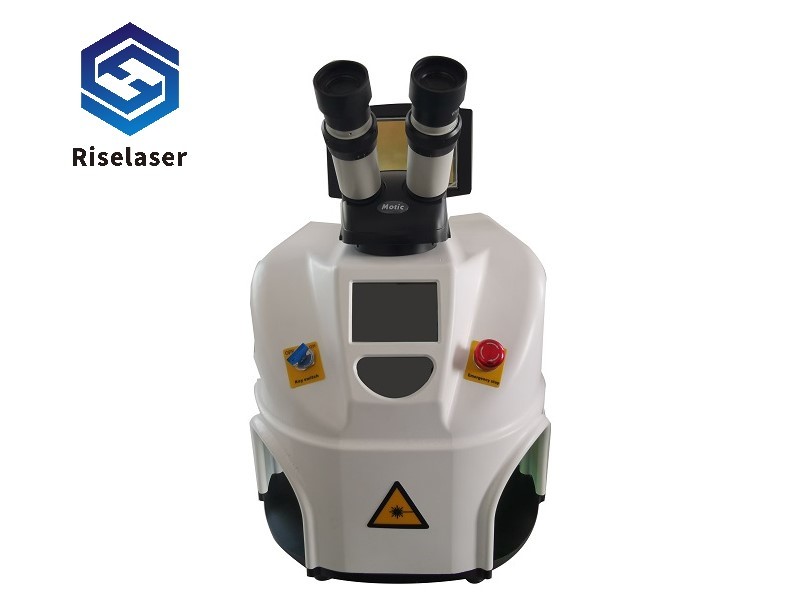

15ms 80W Micro Laser Welding Machine 1064nm Jewelry Laser Welder

Place of Origin Shenzhen
Brand Name Riselaser
Model Number RL-Y80
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Wooden Box
Delivery Time 5-9 working days
Payment Terms T/T, Western Union
Supply Ability 200 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification CE Product Name Laser Welder YAG Spot Precise Welding Machine For Jewelry
Color White Voltage 110Volt/220V Optional
Warranty 1 Year Dimensions L*W*H : 525*305*390 Mm
Power(W) 80Watt Application Jewelry Welding
High Light

80W Micro Laser Welding Machine

,

15ms Micro Laser Welding Machine

,

1064nm Jewelry Laser Welder

Leave a Message
Product Description

15ms 80W Micro Laser Welding Machine 1064nm Jewelry Laser Welder



Introduction



This hot-selling 80W YAG gold and silver laser spot welding machine adopts advanced ceramic and metal reflector cavity, pulse xenon lamp pumps and outputs 1064nm laser, which is mainly used for welding thin jewelry materials.
Precision parts can realize spot welding, butt welding, lap welding and sealing welding.
Wide aspect ratio, small weld width, small heat affected zone, low deformation, fast welding speed, smooth and beautiful weld. The welding quality is high, no air holes, can be accurately controlled, the focus size is small, and the positioning accuracy is high.





Parameters









                            Model

RL-Y80

Laser Type

1064nm YAG Laser

Nominal Laser Power

80W

Beam Diameter

0.5-3.0mm

Pulse Width

0.1-15ms

Frequency

1.0~10.0Hz Continuously Adjustable

Maximum Laser Pulse Energy

50J

Host Power Consumption

≤2.5KW

Cooling System

Build-in Water Cooling

Pump Source

Single Xenon lamp

Aiming and Positioning

Microscope + CCD Camera System

Operating Mode

Touch Control

Display Touch Screen

10X high quality colorful CCD

Operating Language

English, Turkish, Korean, Arabic

Electrical Connection Values

AC 110V/220V ± 5%, 50HZ / 60HZ

Machine Dimension

L53CM×W31CM×H45CM

Wooden Package Dimension

L63CM*W48CM*H50CM

Machine Net Weight

38KG

Operating Environmental Temperature

≤45℃

Humidity

< 90% non-condensing

Application

Welding and repairing all kinds of jewelry and metal parts





Advantage of Mini Spot Laser Welder



1. The foldable display can be adjusted to the most comfortable angle.

2. The water tank is made of high-density acrylic material, which is better than the traditional aluminum water tank.



3. The overall appearance is coordinated, and the plastic shell has a certain streamlined beauty.

4. The base and the optical route are composed of a larger aluminum plate, which is more stable.

5. There is an observation port in the production position for easy positioning during welding.



Welding Sample

15ms 80W Micro Laser Welding Machine 1064nm Jewelry Laser Welder 0



Packaging

15ms 80W Micro Laser Welding Machine 1064nm Jewelry Laser Welder 1







FAQ



Q1: I knew nothing about this machine, what kind of machine should I choose?
A1: Just tell us what you want to deal with, then we will give you suggestion and perfect solutions.
Q2: What should I do if I don’t know how to use it?
A2: We will send you a video and an English manual attached to the machine. If you still have some doubts, please do not hesitate to contact us.
Q3: If something goes wrong with this machine during warranty period, what should I do?
A3: We will supply free parts during warranty period if the machine had some problems.
