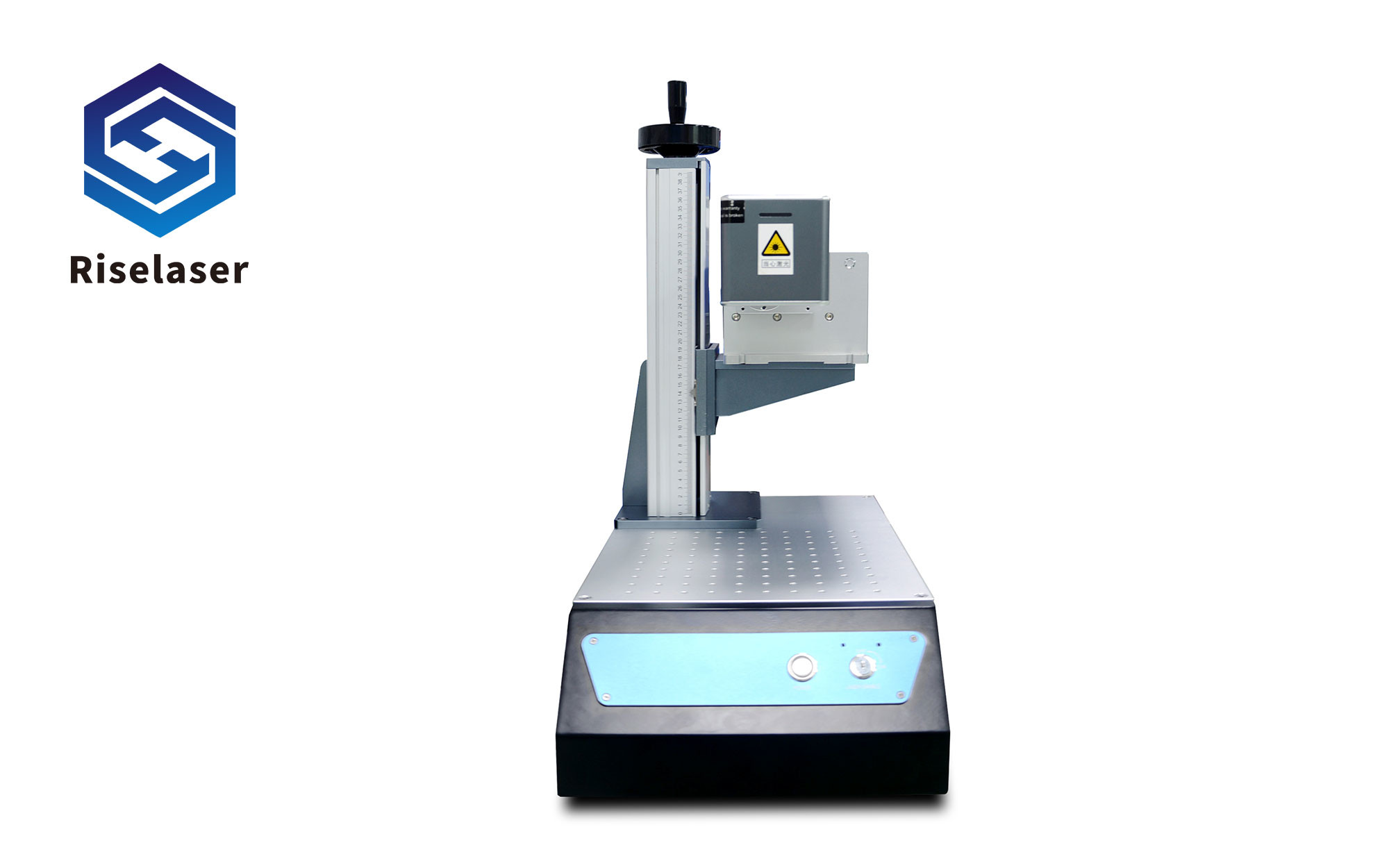

Portable 5W 355nm Uv Laser Engraver For Glass Plastics Ceramics

Place of Origin SHENZHEN
Brand Name Riselaser
Certification CE
Model Number RL-UV5
Minimum Order Quantity 1 SET
Price NEGOTIATION
Packaging Details Wooden Case
Delivery Time 5-9 working days
Payment Terms T/T, Western Union
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 5W UV Laser Marking Machine Working Accuracy 0.01mm
Control Software EZCAD Warranty 1 Year
Laser Wavelength 355nm Marking Speed 0-7000mm/s
Certificate CE Color Silver,Blue
High Light

355nm uv laser engraver

,

150KHz uv laser engraver

,

150KHz uv laser engraving machine

Leave a Message
Product Description



Product Introduction

UV laser marking machine can automatically mark dates, bar codes and QR codes.





Product Parameters







RL-UV3

RL-UV5

Wavelength

355nm

355nm

Output power

>3W@30KHz

>5W@40KHz

Maximum pulse energy

0.1mJ@30KHz

0.12mJ@40KHz

Pulse Repetition Frequency

1-150KHz

1-150KHz

Pulse duration

<15ns@30KHz

<18ns@40KHz

Average power stability

<3%

<3%

Spatial mode

TEM00 (M²< 1.5)

TEM00 (M²< 1.5)

Polarization ratio

>100:1 Horizontal

>100:1 Horizontal

1/e2 beam diameter at output

0.7mm

0.8mm

Beam circularity

>90%

>90%







Advantages

(1) Ultraviolet laser has a narrow pulse width and small thermal influence to help generate peak power. The higher the peak power, the perfect mark can be achieved on some relatively hard materials.



(2) Higher pulse stability, that is, better laser pulse consistency will produce the same engraving effect, so UV marking is very suitable for precise uv marking. The higher pulse repetition frequency can meet the needs of fast marking and high production efficiency.



(3) High photoelectric conversion efficiency, low energy consumption and long service life.

Portable 5W 355nm Uv Laser Engraver For Glass Plastics Ceramics 0Portable 5W 355nm Uv Laser Engraver For Glass Plastics Ceramics 1



Application



1. Laser Marking

2. Micro hole machining

3. Ceramic cutting

4. Thin film etching

5. Wafer cutting

Portable 5W 355nm Uv Laser Engraver For Glass Plastics Ceramics 2

Portable 5W 355nm Uv Laser Engraver For Glass Plastics Ceramics 3





Certifications

Portable 5W 355nm Uv Laser Engraver For Glass Plastics Ceramics 4



Packaging & Shipping

Portable 5W 355nm Uv Laser Engraver For Glass Plastics Ceramics 5



FAQ

Q1: I knew nothing about this machine, what kind of machine should I choose?
A1: Just tell us what you want to deal with, then we will give you suggestion and perfect solutions.
Q2: What should I do if I don’t know how to use it?
A2: We will send you a video and an English manual attached to the machine. If you still have some doubts, please do not hesitate to contact us.
Q3: If something goes wrong with this machine during warranty period, what should I do?
A3: We will supply free parts during warranty period if the machine had some problems.
