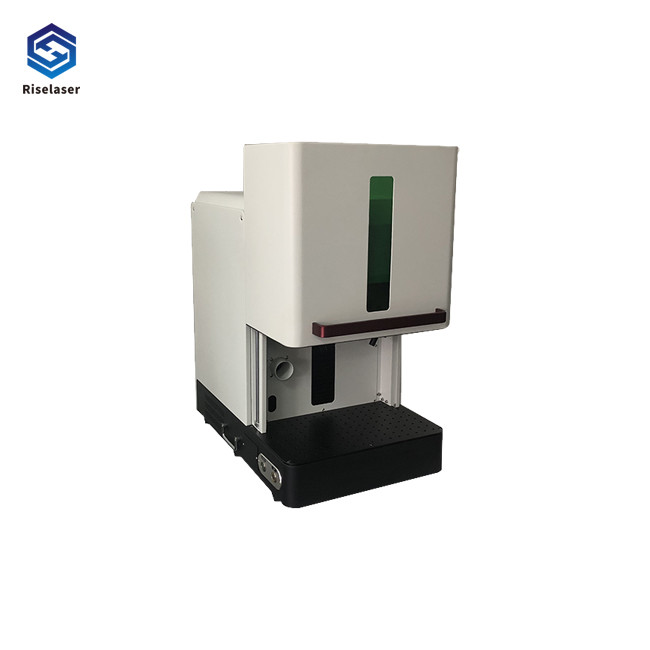

Air Cooling 1064nm 50W Metal Laser Engraving Machine

Place of Origin China
Brand Name Riselaser
Certification ISO9001:2008, CE
Model Number RL-50E
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details Wooden Case, 96KG
Delivery Time 5-9 working days
Payment Terms Western Union, MoneyGram, , T/T, L/C, MoneyGram
Supply Ability 2000 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Enclosed Desktop Type MINI Fiber Laser Marking Machine For Industrial Marking 20W Laser Power 50W
Working Area 110*110mm (Optional) Warranty 2 Years
Package Wooden Case Certification CE
Control Software EZCAD Cooling Mode Air Cooling
Max. Marking Area 300*300mm ( Optional) Machine Laptop Industrial Model
High Light

1064nm Fiber Laser Engraving Marking

,

50W Engraving Marking Machine

Leave a Message
Product Description

Enclosed Desktop Type MINI Fiber Laser Marking Machine for Industrial Marking 20W



1. Machine General Characteristics:



Machine's optical parts special for plastic and PVC materials high speed laser marking, Machine no daily maintenance , no consumable parts and long lifetime, machine using common air-cooling system. Fiber output, suitable for black marking.



Machine designed main for the barcode marking, data matrix marking, Series number marking, technical data sheet marking and anti-fake code marking etc...it's designed with smart and compact size, esay to use and to move, save space, this machine with flexible application and easy to operate.



The Advantages of our Desktop Kini Fiber Laser Marking Machine:

1) The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path,low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG machine.



2) More economized and environmental,original JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions,high-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid, long lifespan of Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs).



3) Machine no maintenance, deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect,Machine with strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc...



4) Machine integrated Air Cooling System, the cooling effect is more excellent than the water cooling effect in YAG laser.



5) Machine no Consumables: One Fiber marker can work for more than 10 years without any consumables.



6) High Speed: 7000mm / second, is 3 to 5 times above that of traditional products.



7) High Precision: Upto 0.0012mm, bring you the fantastic and satisfied marking effect, superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.



2. Applications Industries:

This kinds of desktop mini size fiber laser marking has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy. It is widely used in: advertising industry, arts industry, electronic components industry, medical device industry, glasses watch and clock industry, IC card industry, plastic tool industry, kitchen and bathroom appliance, etc.



3. Enclosed Desktop Type MINI Fiber Laser Marking Machine for Industrial Marking Parameter:

MODEL

RL-10E

RL-20E

RL-30E

RL-50E

Laser power

10W

20W

30W

50W

Length of laser weave

1064nm

1064nm

1064nm

1064nm

Marking scope

110x110~ 250x250

110x110~ 250x250

110x110~ 250x250

110x110~ 250x250

Mark depth

0.3mm

0.4mm

0.6mm

1.0mm

Marker speed

≤15000mm/s

≤15000mm/s

≤15000mm/s

≤15000mm/s

Min line width

0.05mm

0.05mm

0.05mm

0.05mm

min character

0.15 mm

0.15 mm

0.15 mm

0.15 mm

Repeat precision

±0.002mm

±0.002mm

±0.002mm

±0.002mm

Gross power

0.4KW

0.5KW

0.6KW

1KW

Power supply

220V(±10%)/50Hz/ 3A

220V(±10%)/50Hz/ 3A

220V(±10%)/50Hz/ 3A

220V(±10%)/50Hz/ 3A

Operating temperature

10-35°C

10-35°C

10-35°C

10-35°C


PS: the laser power 10W and 20W just for simple shallow marking and engraving, 30W and 50W for depth marking


4. Machine Application Materials:

17-4 PH stainless steel

Magnesium

303 stainless

Metal-plated ceramics

4043 steel

Molybdenum

6061 Aluminum

Nickel plated 1215 mild steel

ABS (white/black)

Nickel plated brass

Aluminum, 6061

Nickel plated gold

Aluminum, yellow chromate

Nickel plated Kovar

Bayer 2807 Makrolon polycarbonate

Nickel plated steel

Bayers bayblend FR110

Nylon

Black/white ABS

PEEK, white

Brass

Polybutylene Terephthalate

Black/white polycarbonate

Polycarbonate (black/white)

Brushed aluminum

Polycarbonate resin 121-R, GE Plastics

Carbon fiber

Polycarbonate, Bayer 2807 Makrolon

Carbon nanotube

Polysulphone

Ceramics, metal-plated

Rynite PET

Clear coat anodized aluminum

Santoprene

Cobalt chrome steel

Silicon carbide

Colored delrin (black/brown)

Silicon steel

Compacted powder iron with phosphate coating

Silicon wafers

Copper

Stainless steel 303

DAP - Diallyl Phthalate

Stainless steel 17-4 PH

Delrin, colored (black/brown)

Steel 4043

GE Plastics polycarbonate resin 121-R

Steel, machine tool

Glass filled PEEK

Various inconel metals (nickel-chromium super alloys)

Glass filed Teflon

White PEEK

Hard coat anodized aluminum

Yellow chromate aluminum

Inconel metals (various)

Zinc plated mild steel

Machine tool steel

And Many More



5. Our Fiber Laser Marker Main Advantages:

5.1. Our machine's fiber laser source adopt the Germany IPG or China's top quality Raycus famous brand, other key optic parts we adopt the famous brand wo ensure the machine with exporting standard ( A top quality ) .

5.2. We can customized the laser marking machine as per customer's requirements, for example to design the special fixtures, the automation system and the corresponding matching services.

5.3. Have the professional QC team for machine quality controal, we need at least 3 days to test the machine's stability before machine shipping out,

5.4. Recommend the machine as per customer's exact needs with the concept of Economic and practical.

5.5. We not only provide the machine itself, but also provide the professional laser solutions at customer end.

5.6. After sale team response customer's problems within 12 hours for oversea market, So buy our laser machines without any future worries.



6. The Real Laser Marking Samples for Reference as Follows:

Air Cooling 1064nm 50W Metal Laser Engraving Machine 0

Air Cooling 1064nm 50W Metal Laser Engraving Machine 1





Welcome to contact us for more informations about laser marking machines, we can customized different kinds of laser marking system depend on customer's actual requirements.
