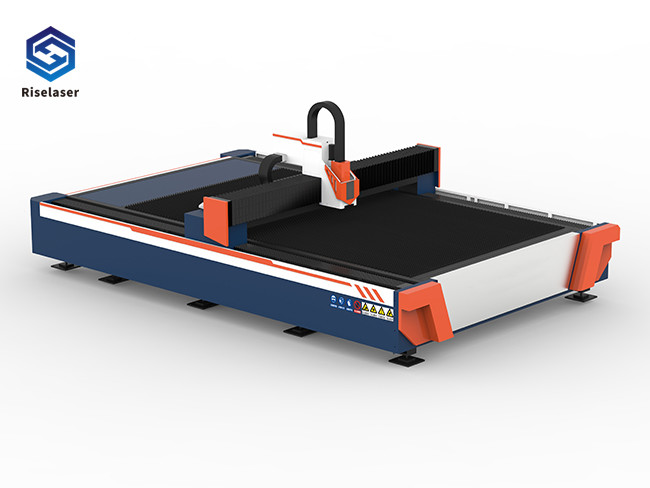

Water Cooling Metal Fiber Laser Cutting Machine 2000W For Mild Steel / Iron Plate

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification CE
Model Number RL3015
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details wooden package
Delivery Time 15 - 30 working days
Payment Terms T/T, MoneyGram, L/C
Supply Ability 1000 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 2000W Fiber Laser Cutting Machine Used In Mild Steel Plate / Iron Plate Laser Type Fiber Laser
Laser Power 2000W Working Size 3000*1500mm
Warranty 12 Months After-Sales Service Engineers Service Overseas
Weight 3000 Kg Package Wooden Case
Control Software Cypcut CNC Or Not YES
Applicable Material Metal Material Sample Test Available
High Light

metal cutting laser cutter

,

fiber laser metal cutting machine

Leave a Message
Product Description



2000W Fiber Laser Cutting Machine 3015 For Mild Steel / Iron Plate



Introduction of RL3015 model:

RL3015 Enclosed Type Double Worktable Model Fiber laser cutting machine adopts the most sophisticated Germany IPG or SPI or Rofin or Raycus Fiber Laser of China, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with precision ball screws, linear guide drive run.



RL3015 fiber laser cutting machine produced by RISE LASER adopts international advanced 500W/1000W/2000W/3000W/4000W power fiber laser from IPG ,ROFIN laser of Germany, imported high-precision ball screw, linear guide way and other high efficient and high precise drive mechanism. The precise CNC fiber laser cutting machine integrates imported servo motor with advanced CNC system, is high new tech product with a collection made of laser cutting, precise machinery, CNC technology and other subjects. It is applied for cutting and shaping of carton steel plate, stainless steel plate, aluminum plate and other metal materials. With high speed, high precision, high efficiency, high cost performance and other features, it’s the first choice in cutting machines for industrial metal processing.



Main Features:

This metal sheet cutting, fast speed new laser equipment, is popular in various fields such as advertising trademark, advertising character, High/low voltage electrical cabinet, mechanism parts, kitchenware, cars, mechanical, metal craftwork, saw blade,and so on. It is able to various metals like Stainless steel, carbon steel, alloy steel, spring steel, aluminum, aluminum alloy, galvanized sheet, Pickling plate, copper, silver, gold, titanium and other metal sheet, pipes and tubes .The fiber laser is a new development of a new type of solid state lasers , it has a large cooling area , good beam quality , compact structure.Fiber lasers due to the optical path can be coiled , the optical path space is smaller , in the case of using single core junction semiconductor pump lasers do the pump source , the pump laser may be dispersed installation ,and has good heat dissipation characteristics , in the mounting density is not high case, the can is cooled by air ,and in the case of higher mounting density , only a small amount through the water to meet the cooling requirements therefore, the volume of the all-fiber laser is smaller than the same output power of the gas and the solid-state laser system , the weight lighter.

1.The machine uses a moving gantry structure fast speed new laser equipment , imported high-precision screw and linear guide ,smooth transmission, high precision IPG 500w fiber laser cutting machine 1500mmx3000mm laser engraving machine for sunglass china manufacturer jinan laser cutter.

2.Bed with the moving beam as a whole welded structure , roughing after annealing , and then the vibration aging treatment , can completely eliminate the stress of welding and machining ,good rigidity, high accuracy can be maintained for a long time does not deform IPG 500w fiber laser cutting machine 1500mmx3000mm laser engraving machine for sunglass china manufacturer jinan laser cutter.

3.X, Y, Z axes are imported from Japan servo motor , high-precision , high- speed , high-torque , high inertia , stable performance and durable . Ensure the machine's high speed and acceleration IPG 500w fiber laser cutting machine 1500mmx3000mm laser engraving machine for sunglass china manufacturer jinan laser cutter.

4.Using many laser cutting control special function modules fast speed new laser equipment, powerful , human machine interface , easy to operate based on the Windows operating system , fiber laser cutting machine CNC system integrated IPG 500w fiber laser cutting machine 1500mmx3000mm laser engraving machine for sunglass china manufacturer jinan laser cutter.

5.Independent research and development of personalized nesting software , CNC cutting machine to achieve " full-time cutting , efficient cutting and high nesting rate cut " core technology is the fundamental guarantee of effective material savings , improve cutting efficiency IPG 500w fiber laser cutting machine 1500mmx3000mm laser engraving machine for sunglass china manufacturer jinan laser cutter.

6.Cutting fiber laser head selection U.S. Lasermech produced special cutting head , and capacitive sensing , induction of high precision and responsive , the most stable and reliable performance IPG 500w fiber laser cutting machine 1500mmx3000mm laser engraving machine for sunglass china manufacturer jinan laser cutter.


7.Imported high precision electronic control proportional valve , precise control of the cutting auxiliary gas pressure ,in order to achieve the best cutting results IPG 500w fiber laser cutting machine 1500mmx3000mm laser engraving machine for sunglass china manufacturer jinan laser cutter.




Technical Parameters:
Model
RL3015
RL4020
RL6020
Cutting Range
1500*3000mm
2000*4000mm
2000*6000mm
Laser Output Power
500w/700W/1000w/1500w/2000w/3000w
Laser Type
Fiber Laser
Max Moving Speed
70m/min
Max Cutting Speed:
20m/min
Cutting accuracy
≤ ± 0.03 mm/1000mm
Driving Mode
Double ball screw driving / Double gear rack driving
Protection System
Enclosure protection
Cooling Type
Water Cooling
Software
Laser Cutting Software, Metal Nesting Software
Supported Format
PLT, DXF, BMP, AI, DST, DWG, etc.



Advantages​:

1. Excellent quality of light beam

2. Highly cutting speed: the 2 times by CO2 laser cutting machine under the same power.

3. Very high stability and efficiency of photoelectric conversion

4. Very low using cost and maintenance cost

5. Convenient product operation and maintenance

6. Very strong soft optical effects: compact volume and structure

7. Gantry double driving structure, high damping machine tool bed, good rigid,





Advantages:

1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7. Easy operations: fiber line transmission, no adjustment of optical path.

500W, 1000W,2000W,3000W,4000W Fiber Laser Cutting Machine





Cutting machine Pre-sale service :



1.Free sample cutting

For free sample cutting/testing, please send us your CAD file, we will do cutting here and make a video to show you the cutting, or send samples to you to check cutting quality.

2.Customized machine design

According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.



Cutting machine After-sale service:



1.Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype, whatsapp, etc for fast solution. We can arrange for technician to go to customer's site for overseas service, and the customer should cover visa, ticket and local living cost.

2. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance. We provide free training and accommodation for up to two people.
