Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter

Model Number RL-SF15
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details Wooden Case
Delivery Time 7- 12 Work Days
Payment Terms D/A, T/T , Western Union, L/C
Supply Ability 2000 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China Brand Name Riselaser
Certification CE,ISO Product Name Laser Fume Extraction System With Filter Cartridge Filter For Industrial
Warranty 1 Year Dimensions 620*640*1260 MM
Motor Protection Class IP54 Noise DB(A) 78±2
High Light

industrial fume extraction systems

,

welding fume extraction system

Leave a Message
Product Description

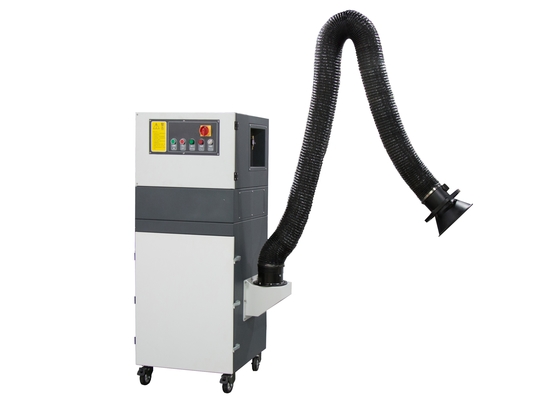

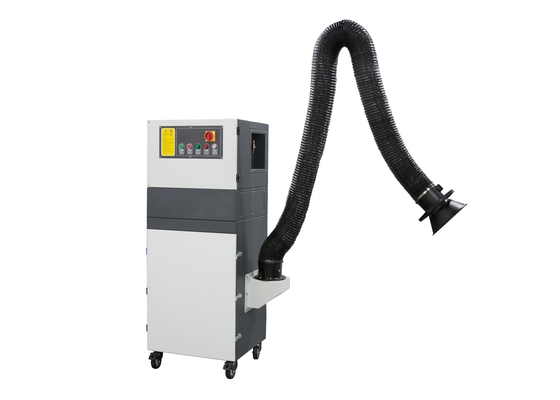

Laser Fume Extraction System with Filter Cartridge Filter for Industrial
SF series filter cartridge and pulsed ash cleaning is remarkable characteristic, integrated structure, convenient to move, suitable for dust floating place, specially designed for large dust quantity, fine dust, continuous operation.It is widely used in gas welding, robot welding, special welding machine and so on.

Technical parameter

Model

RL-SF15

RL-SF22

Power (KW)

1.5

2.2

Power Supply (V/Hz)

380/50

380/50

Maximum Flow (m3/h)

18002800
Filter Area(m2)98
Noise dB (A)73±275±2
Dimension (cm)65*60*16265*60*162
Weight (kg)180190

Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 0

Characteristics

  • High pressure power, continuous escort

Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 1
The power system USES the internationally advanced Siemens motor, the performance is efficient and stable








  • Electrical protection, name brand components

In terms of electrical system, the main electronic control components adopt international famous brand -- French schneider products.Turbine motor can realize independent control of electric box, with built-in thermal overload protection, phase missing and anti-equivalent phase sequence protection. The control panel is simple and generous, and can easily realize remote control, linkage control and other functions.

Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 2



  • Filter and reject dust efficiently

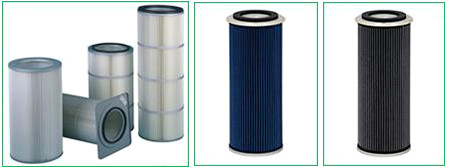

A variety of filter materials are available in the filter system.Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 3
According to different working conditions:
Standard configuration: oil proof waterproof polyester fiber filter cartridge
Optional: imported PTFE membrane filter cartridge
Imported anti-static membrane filter cartridge
Donaldson cartridge



  • Pulse blowback, efficient and reliable

By adopting the best cleaning technology of filter cartridge so far, automatic pulse back blowing to clear the ash, and combining with specially developed spiral blowing technology, the cleaning area covers the entire filter cartridge surface, and there is no cleaning blind area.
Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 4


  • Universal suction arm, free hovering

Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 5The built-in skeleton of the universal suction arm is exclusively designed, which can hover at the position of 360 degrees according to the idea of voorho.the inhalation hood is designed with a wide width facemask, which can absorb welding dust with maximum efficiency.The air suction arm hose is made of high class polyester and flame retardant.






  • Drawer type dust collection box, practical and convenient

Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 6
The dust collection box adopts the drawer type structure. When cleaning the soot and welding slag collected, you only need to open the door plate and take out the dust collection box, which is convenient, fast and efficient.








  • Industrial casters for your choice

Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 7
Industrial casters are additional accessories that need to be purchased by customers, which can be selected and matched. The equipment is reserved for mounting holes, which is simple and convenient to install.The wheels are made of top class polyurethane (PU), the supports are made of 2.5mm pickling board to increase reinforcing ribs, the 4-inch casters can carry 150kg each, and the wheel surface is designed with lines to enhance the anti-skid performance.






Typical Applications
Industrial Laser Fume Extraction Systems IP54 Integrated Structure With Cartridge Filter 8
