RL-P5050 Fiber Laser Metal Cutting Machine 500W 800W 1KW 800mm/s Operating Speed

  • RL-P5050 Fiber Laser Metal Cutting Machine 500W 800W 1KW 800mm/s Operating Speed
  • RL-P5050 Fiber Laser Metal Cutting Machine 500W 800W 1KW 800mm/s Operating Speed
  • RL-P5050 Fiber Laser Metal Cutting Machine 500W 800W 1KW 800mm/s Operating Speed
  • RL-P5050 Fiber Laser Metal Cutting Machine 500W 800W 1KW 800mm/s Operating Speed
Place of Origin Made in China
Brand Name Riselaser
Certification CE
Model Number RL-5050
Minimum Order Quantity 1 Set
Price USD
Packaging Details Standard Wood Packing
Delivery Time 30-45 Days
Payment Terms T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability 100 Sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model RL-P5050-500 Laser Power 500W
Laser Source Max/Raycus/Ipg Maximum Processing Size 500*500mm// 600*600mm
Maximum Operating Speed 800mm/s Control System Cypcut
Material Cutting Thickness 0.2-30mm Electric Power Supply AC380V 50Hz/5KW
Positioning Accuracy ±0.05mm/500mm HS Code 8456110090
Transport Package Wooden Carton Weight 1100KG
Repeat Position Accuracy ±0.05mm/500mm Laser Type Fiber Laser
High Light

metal cutting laser cutter

,

stainless steel laser cutting machine
Leave a Message
Product Description

500W 800W 1KW High Precision Sheet Fiber Laser Cutting Machine



1.Application Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc



Machine parameters for laser generator:

Item Parameters
Laser type Fiber laser
Power 500W/1000W/1500W/2000W/3000W/4000W/6000W/8000W/12000W
Wave length 1070-1080nm
Electro-optical conversion efficiency 25-30%
XYZ Route 3025mm/1525mm/100mm
Material Cutting thickness 0.2-8mm
Cutting seam width 0.1-0.2mm
Repeat position accuracy ±0.05mm/500mm
Positioning accuracy ±0.05mm/500mm
Max.Moving Speed 60000mm/min
Max.Accerlation speed 25m/min
Max.loading weight 500kg
Machine weight 2300kg
Required Power 220V 50Hz/60Hz
Machine size(L*W*H) 4500mm*2450mm*1700mm

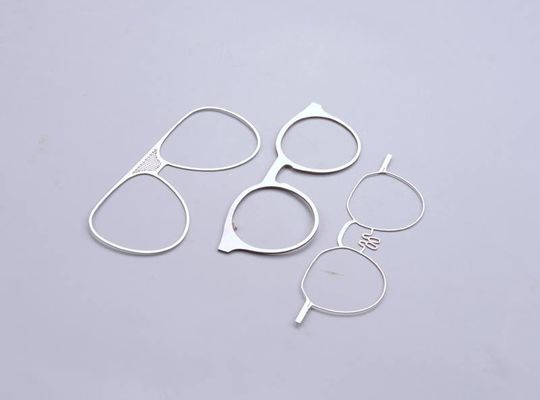

500W 800W 1kw High Precision Sheet Fiber Laser Cutting Machine

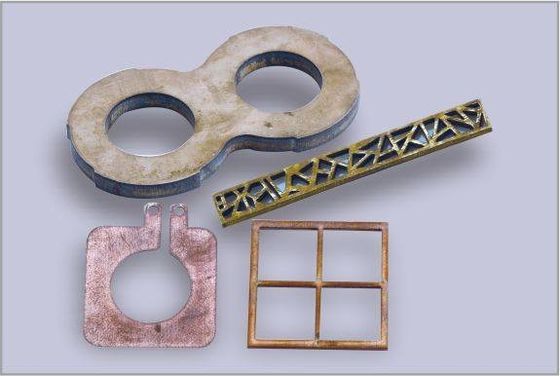

500W 800W 1kw High Precision Sheet Fiber Laser Cutting Machine



Configuration of Fiber Laser Cutter:

  Description Qty Original Brand
1 Fiber laser source (500W/800W) 1SET China MAX
2 Laser cutting head 1PC Switzerland RAYTOOLS
3 Machine bed and accessories 1SET China
4 Electric control 1SET   OMRON,Schneider
5 Gas circuit control 1SET Japan SMC
6 Precise Rack Each 3SETS China
7 Precise linear guide rail Each 3SETS Taiwan PMI
8 Planetary Gear 3SET China
9 Machine bed accessories 1SET China
10 Digital cutting system 1SET USA AHEADCUT
11 Industrial control computer 1SET China AHEADCUT
12 Communication servo and driver 4SETS China
13 Cooling Unit 1SET China
14 Waste recycling equipment 1SET China



Equipment Work and Environmental Requirements

  Requirement





1

Power supply: regulated stable power supply: (recommended)

(1)rated output voltage: 220 v

(2) voltage frequency: 50 hz

(3) the stability of the two phase voltage + 5%

(4) the output voltage adjustment rate: < 2%



2

Cutting with auxiliary gas:

Clean, dry compressed air and high purity oxygen (O2) and nitrogen (N2) ,purity no less than 99.9% purity



3

Cutting material

Sheet material is even, smooth;Clean the surface



4

The compressed air supply device

(1) the rated pressure: 14 bar

(2)Capacityt: 1 m3



Theory Cutting parameter

Power(W) Material Thickness(mm) Cutting speed(m/min) Gas
800 Stainless steel 1 8-9 N2
2 5-6 N2
3 1.8-2 N2
4 1.2-1.3 N2
800 Carbon steel 1 8-10 O2
2 4-5 O2
3 2.8-3 O2
4 1.4-1.8 O2
5 1.2-1.5 O2
6 0.9-1.1 O2
8 0.6-0.7 O2
Power(W) Material Thickness(mm) Cutting speed(m/min) Gas
500 Stainless steel 1 6-8 N2
2 2-2.2 N2
3 0.6-0.8 N2
500 Carbon steel 1 7-8 O2
2 3.5-4 O2
3 2.8-3.2 O2
4 1.3-1.5 O2
5 0.9-1.1 O2
6 0.6-0.7 O2
500W 800W 1kw High Precision Sheet Fiber Laser Cutting Machine



High Precision Fiber Laser Cutting Machine for Metal (PIL0302-150F)
