Small Size Precision Fiber Laser Cutting Machine Automatic Positioning 800 Watt

Place of Origin Shenzhen
Brand Name Rise Laser
Certification ISO9001:2008
Model Number RL-5050
Minimum Order Quantity 1 unit
Price negotiation
Packaging Details Wooden Case
Delivery Time 7-15 days
Supply Ability 2000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Small Size 5050 High Precision Fiber Laser Cutting Machine Laser Power 300w To 800w
Working Area 500*500mm Max Moving Speed 60m/min
Positioning Accuracy ± 0.01-0.03 Powe Supply 3×380V±10% 220V±10%
Package Wooden Case Warranty 1 Year
High Light

mini cnc laser cutter

,

fiber cutting machine

Leave a Message
Product Description

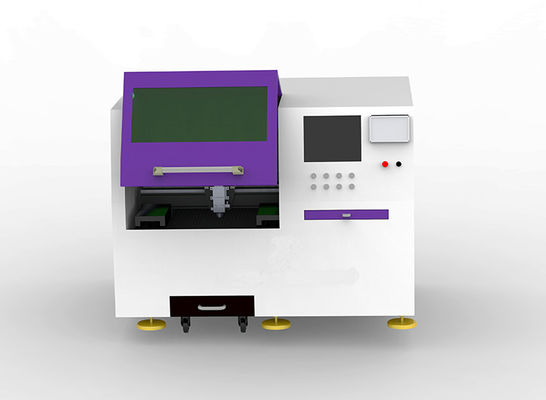

Small Size 5050 High Precision Fiber Laser Cutting Machine





This model adopts high-precision linear motor workbench, high precision, fast speed; optional high-precision CCD automatic positioning, automatic calibration. The whole process controlled by automatic computer software, the software interface real-time feedback, timely understanding of the processing status, non-contact processing program, no mechanical stress and deformation, simple operation, high cutting precision.

Small Size Precision Fiber Laser Cutting Machine Automatic Positioning 800 Watt 0



1Practical new type patent integrated design, can match with different types or manufacturers of laser source, compact structure reliable, safe, practical and reasonable.
2Using an optical marble platform, anti-vibration frame design, suitable for high speed movement, high stability.
3High-precision, with full feedback linear motor workbench, speed is fast; large working area visual precision positioning is optional, automatic precision calibration.
4The multi-function integrated control, independent research and development of patent software, software automatic control in processing, the software interface real-time feedback, showing all functions and all parts of processing status; non-contact processing mode, no mechanical stress and deformation.



1. Configuration

# Item Specification Brand Remark
1 Laser Source 800W Maxphotonics
2 linear motor   Raytools
3 Optical grating resolution 0.5μm Spain



4

Driver   servotronix
5 Z axis Screw module group   Empower
6 Laser cutting head BT230 Raytools
7 Precision Small Size Precision Fiber Laser Cutting Machine Automatic Positioning 800 Watt 1linear guide rail   Hiwin
8 Marble 1800*1350*200 Shandong
9 Organ cover Standard Raytools
10 Machining material Standard Raytools

aviation aluminum-alloy





2. Parameter

Model RL5050
Working size 500×500(mm)
Max. Acceleration 1.2g







X AXIS

Max. Moving speed 60m/min
Route 500mm
Positioning accuracy ±0.01mm
Repeatition accuracy ±0.004mm







Y AXIS

Max. Moving speed 60m/min
Route 500mm
Positioning accuracy ±0.01mm
Repeatition accuracy ±0.004mm
Z AXIS Route 100mm



3. Working condition

1 Working temperature -10℃~45℃
2 Relativede Humidity <90% no condenser
3

Environment

Good ventilation, no vibration
4 Power supply 3×380V±10% 220V±10%
5 Power frequency

50Hz



4. Machine proposal

4. 1 The Machine rack adopts marble structure and US CNC laser cutting system. With Integrated designing, through gantry milling machine processing ,so to make the movement be accurate .linear motor driving system, friendly interface and long term stable working.

Adopted THK Japan precision linear guide rail, with high accuracy, low abrasion and easy to be assembled or exchanged.



4. 2 laser cutting head

BT230 (Raytools, Switzerland brand ) laser cutting head with auto focus system. It can prevent materials waste from distortion cutting. The protection glass can keep and protect the low cost of the important optical parts inside of the cutting head. Auto focus system is suitable for non-flat metal sheet processing. Combined with high quality lasers the BT230 can be widely used in ceramic, medical, semiconductor and other industries.

Item Parameter
collimation 100mm
focus 125mm
optical aperture 25mm
nozzel (single) :0.8/1.0/1.5/2.0/2.5/3.0/3.5/4.0mm
lens materials quartz
fiber plug QBH
Auxiliary pressure Max. 20bar
weight

~1.5Kg



Control system:

The use of professional PC industrial computer operation, graphical interface, easy to operate, professional cutting control software can freely design a variety of graphics and text, real-time processing, support CAD, CorelDraw and other professional mapping software.

. High-quality industrial computer control operation

. High efficient, easy to operate CNC cutting system

.  Z axis automatic tracking function





Applications display
Applied to various metal sheet cutting and punching and other kinds of laser processing, such as hardware, consumer electronics components, various instruments, sheet metal processing industrial cutting; precision cutting and drilling for various metal materials.
