Q - Switch Pulse Fiber Laser Generator For Metal Laser Marking Machine

Place of Origin Shenzhen
Brand Name Maxphotonics
Certification CE , ISO9001:2008
Model Number MFP-20-50
Minimum Order Quantity 1
Price negotiation
Packaging Details carton
Delivery Time 7 days
Supply Ability 2000units

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Laser Source Laser Power 20,30 50w
Wavelength 1064nm Beam Quality M2<1.6
Power Supply 24VDC Warranty 2 Years
High Light

fiber laser generator

,

fiber laser module

Leave a Message
Product Description



Maxphotonics Fiber Laser Source for Metal Laser Marking Machine



Rise laser resell Maxphotonics fiber laser source, as the most representative products, the series of MaxPulse Q-Switch pulse fiber lasers use the design of high reliability and high integration, gather all of the advantages in one fancy package, and have been accepted by numerous customers, and occupied more market shares among all of the similar products, the most appropriate word for it, is "installing means enjoying".

Q-Switched Pulsed Fiber Laser Series are maintenance-free fiber lasers based on the Q-switched technology andMOPFA. These lasers deliver light centered at 1064nm and guided to the work piece via a flexible metal-sheathed fiber cable. It provides a set of pulse durations, repetition rates and peak powers. The optical head may be equipped with an opto-isolator, that makes it possible to mark directly on non-metallic materials (plastic, wood, paper, etc.) and some metal with low reflectivity.

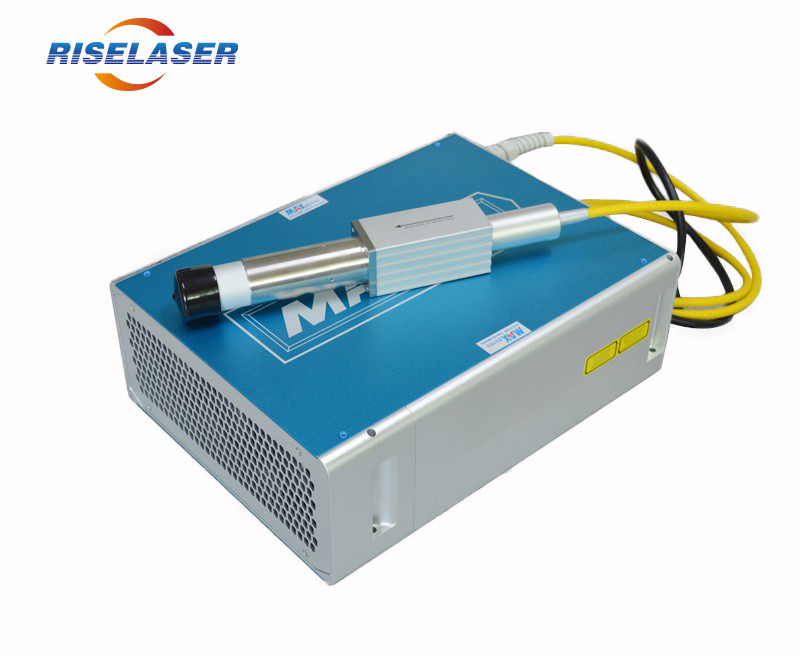

Q - Switch Pulse Fiber Laser Generator For Metal Laser Marking Machine 0

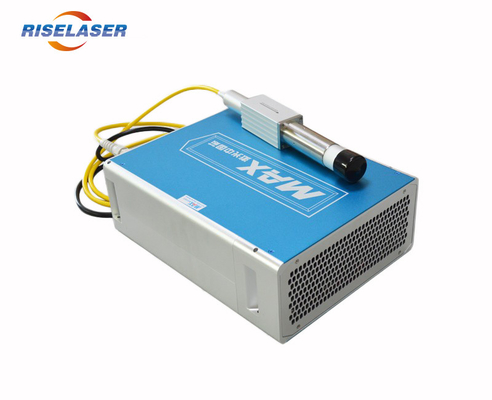

Q - Switch Pulse Fiber Laser Generator For Metal Laser Marking Machine 1

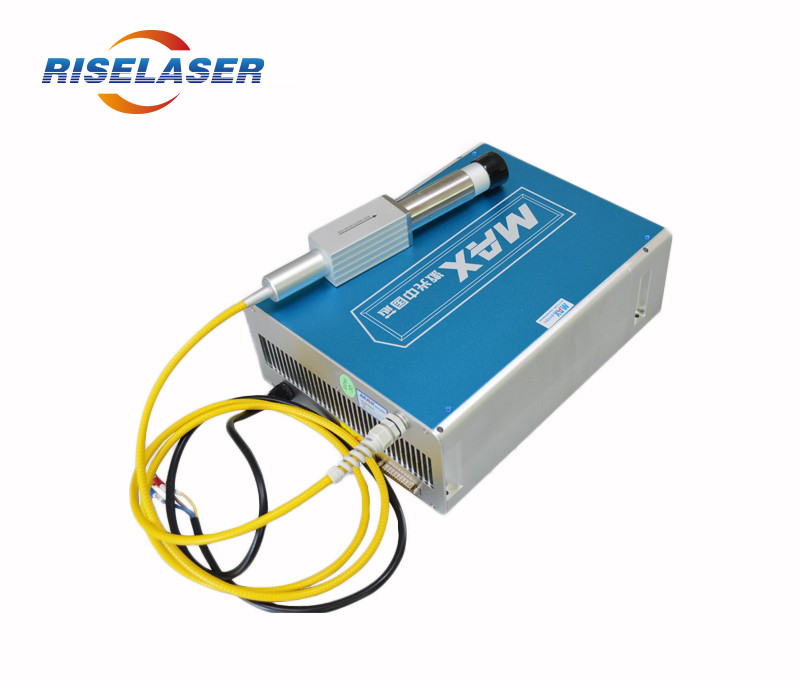

Q - Switch Pulse Fiber Laser Generator For Metal Laser Marking Machine 2





Main Features:

High beam quality fiber output.

Superior reliability, long lifetime.

No shadow or virtual open circuit phenomenon when processing on special materials.

Universal DB-25 interface.



Optical Characteristic Parameters

No.

Characteristics

1Test conditions

Min.

Nom.

Max.

Unit

1

Mode

Pulse

2

Polarization

Random

3

Beam Quality M2

Pout=Pnom

1.1

1.3

1.6



4

Center Wavelength

Pout=Pnom

1055

1064

1070

nm

5

Spectrum Width(3dB)

Pout=Pnom



5

10

nm

6

Average Optical Power(Pnom)

MFP-5W

4.5

5

5.5

W

MFP-10W

9.5

10

10.5

MFP-20W

19.5

20

20.5

MFP-30W

29.5

30

30.5

MFP-50W

49

50

51

7

Power Range



10



100

%

8

Single Pule Energy

MFP-5W



0.45



mj

MFP-10W



0.56



MFP-20W



0.67



MFP-30W



1



MFP-50W



1



9

Optical Pulse Width(FWHM)



90

100

110

ns

10

Pulse Repetition Frequency (PRF.)

MFP-5W

10



30

KHz

MFP-10W

22



50

MFP-20W

30



60

MFP-30W

30



60

MFP-50W

50



80

11

Output Power Stability

Pout=Pnom





5

%

12

Beam Diameter

1/e2

6

7.5

9

mm

13

Beam Ellipticity



90





%

14

Delivery Cable Length



1.9

2.5

3

M

15

Laser Startup Time

Pout=Pnom,10%~90%



110

140

us

16

Laser Shutdown Time

Pout=Pnom,90%~10%



110

150

us

General Characteristic Parameters

No.

Characteristics

Test conditions

Min.

Nom.

Max.

Unit

1

Operating Environment Tem.



10



42

2

Storage Tem.



-10



60

3

Cooling Method

Air-cooling

4

Warm Up Time

-Operate





1

min

-Stable





10

5

Operating Environment humidity



10



95

%

6

Dimensions

345.5*266.2*120

mm

7

Weight

MFP-5W



7.5



kg

MFP-10W



10



MFP-20W



10



MFP-30W



12



MFP-50W



12



8

Power Supply



23

24

25

VDC

9

Power Consumption

MFP-5W



90



W

MFP-10W



12



MFP-20W



150



MFP-30W



240



MFP-50W



360



For reference only. Other beam diameter avai lable by order.





Product Application:

Widely used marking on metal, part of the non-metallic plating materials, plastic rubber, industrial-used plastics, ceramics and other marking, Deep carved, Fine processing, Special material processing.
