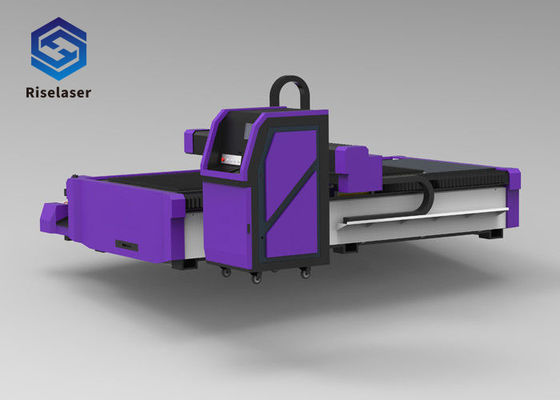

High Power Ss Laser Cutting Machine Fully Closed Type Computer Operation

High Power 2KW Metal Fiber Laser Cutting Machine Fully Closed Version for Metal Cutting With Exchange Table ​


Machine Characteristics:

1. Very high stability and efficiency of photoelectric conversion

2. Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.

3. Excellent quality of light beam

4. Very low using cost and maintenance cost

5. Convenient product operation and maintenance

6. Very strong soft optical effects: compact volume and structure

7. Gantry double driving structure, high damping machine tool bed, good rigid,

8.This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed,high precision and high reliability of equipment.

9. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.

10. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.

11. Automatic swiching table configuration, which shortens the standby time, and effectively enhances the working efficiency more than 30%.

12. Optional Fully enclosed protective cover,using safety.(Enclosed Model).

Advantages Comparison between Different Types of Laser Generators:

SPECIFICATIONS FOR RL-3015-2000​ Fiber Laser Cutting Machine:

 Model:RL-3015-2000
Laser Power:2KW
Laser Source:IPG Fiber Laser Source
Laser Type: Fiber Laser
Laser Technology:Germany Technology
Working Area:3000*1500mm
Max. Cutting Thickness(mm):0.5-20mm carbon steel,0.5-10mm stainless steel
Max. Cutting Speed:8-9 Meters / Min (up to Materials)
Laser Wavelength:1070nm
Minimum Line Width:≤0.1mm
Location Precision:≤±0.05mm
Re-Location Precision:±0.02mm
Max. Moving Speed:100m/min
Supporting Format:PLT, DXF, BMP, AI
Power Demand:380V/50Hz .380V/60HZ
Cooling Way:Water Cooling
Worktable Max. Load:1000 kgs
Transmission Method:Gear and rack
Table-Driven System:Schneider Imported Servo Motor & Driving System
Focus Method:Following and Automatic Adjust Focus
Control Method:Offline Movement Control

Control Software:Cypcut Professional Fiber Laser Cutting Control System

Products Advantages for 2KW Metal Fiber Laser Cutting Machine Fully Closed Version:
1. Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.
2. Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out.User can decide to manually do above work, or let controller do it automatically.
3. Support conventional picture edit functions
4. Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap ….etc
5. Unique function of Preview of cutting work flow.
6. Support segmental pierce, Progressive pierce, Pre-pierce, power pierce,,, separately setting output laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.
7. Support to set separate lead in/out speed according to adjustment of laser power.
8. Big storage, allowing user to save all cutting parameters to use it again on same material.
9. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.
10. Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.
11. Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.
12. Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.
13. Input/output and alarm input are programmable, support wireless remote control, and support internet.

Applied materials of 2000W Fiber Laser Cutting Machine:
Fiber cutter is mainly used for carbon steel cutting, mild steel, stainless steel, silicon steel,aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials. It is an cnc laser cutters can be used to do high precision cutting. It also can be called fiber cutter machine,fiber optic laser cutter,laser cutter for metal,fiber cutter,carbon steel cutting,cnc laser cutters.

Applied Industry of 2000W Fiber Laser Cutting Machine:
This laser cutter for metal is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
